Rolls-Royce Spectre Wallbox Charger
Rolls-Royce Spectre Wallbox Charger
SKU:61905A1E1D3
Price
Sale
Sold out
Regular price
$860.00
Regular price
Sale price
$860.00
Unit price
/
per
Couldn't load pickup availability

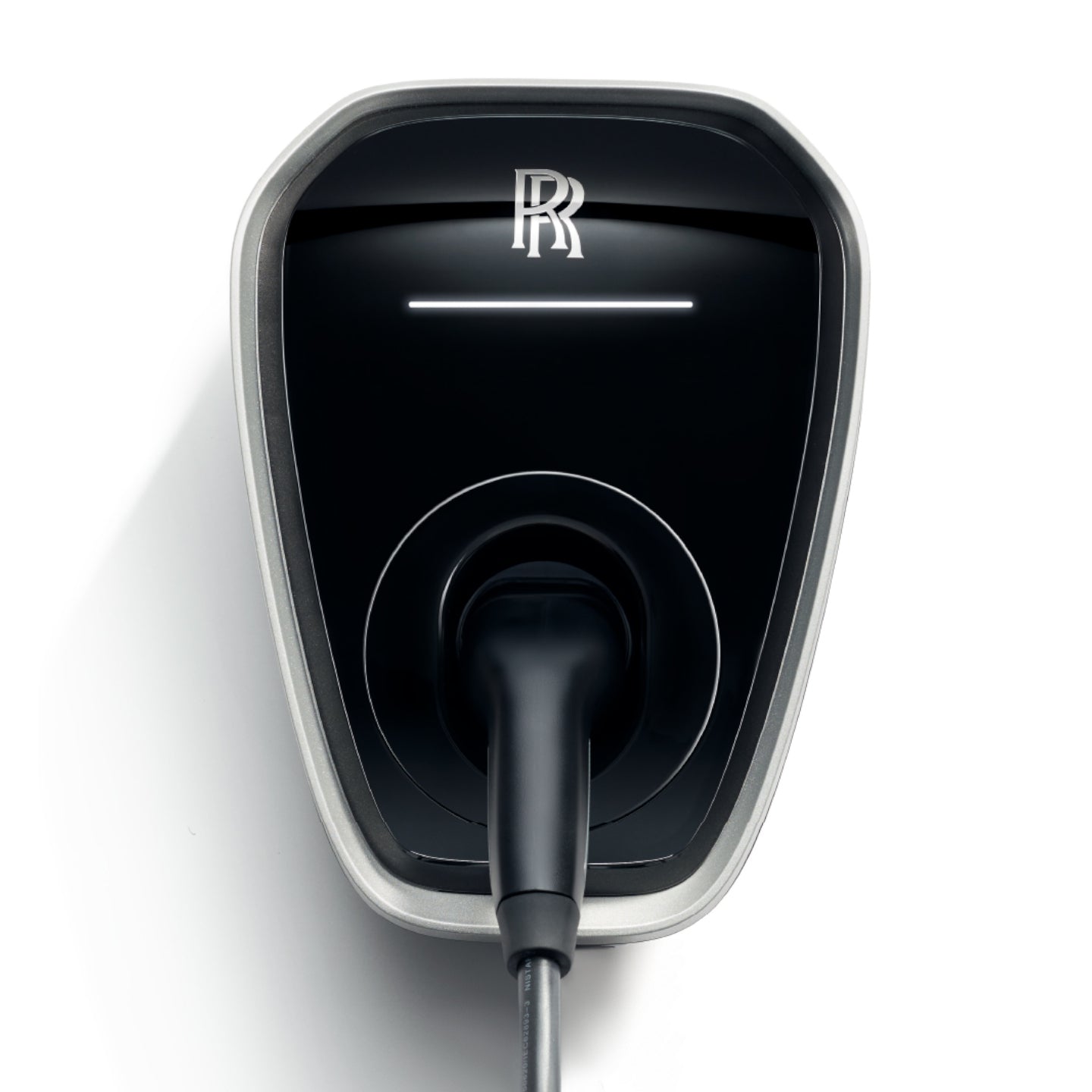

Designed for easy, convenient charging, the Rolls-Royce Wallbox is sleek and refined.

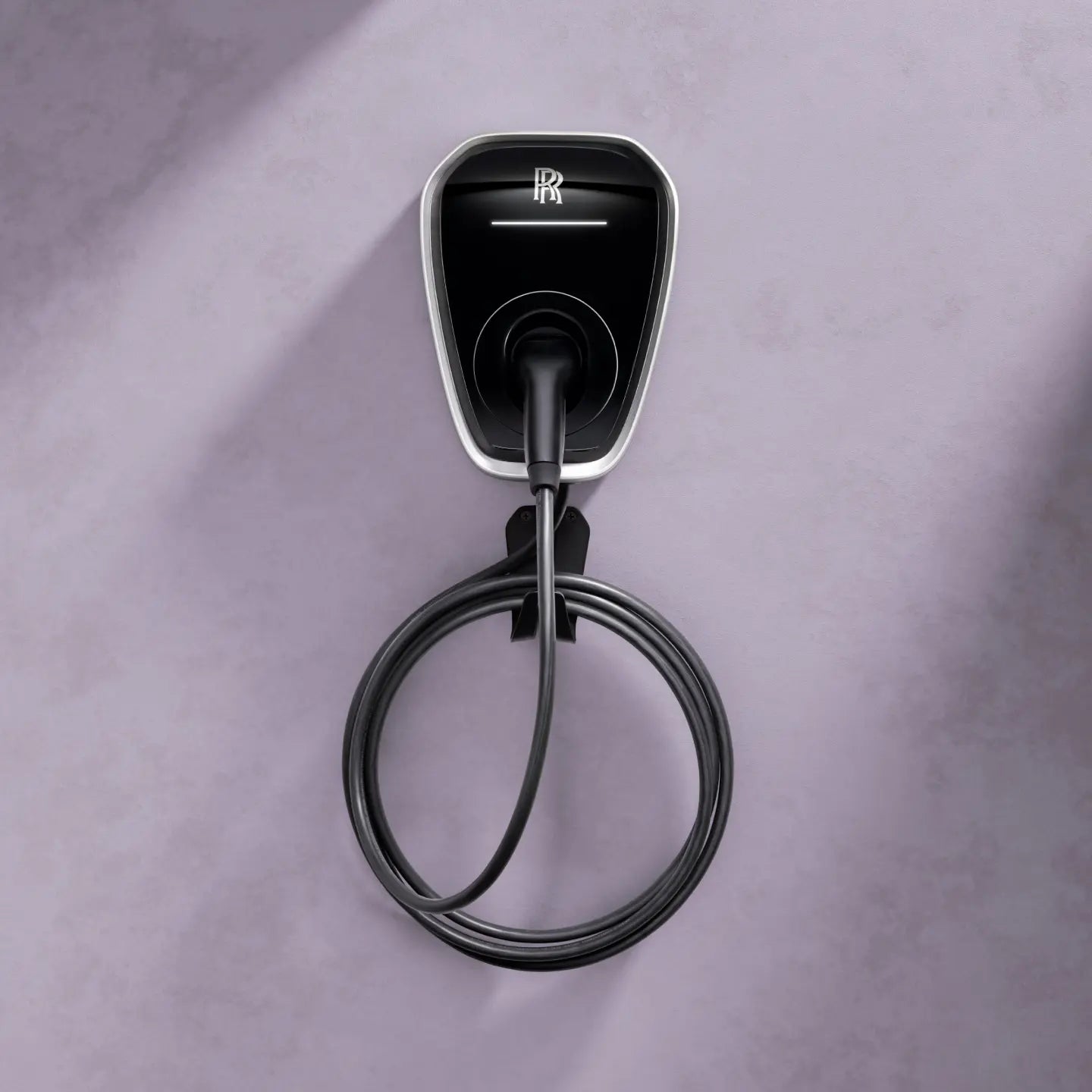

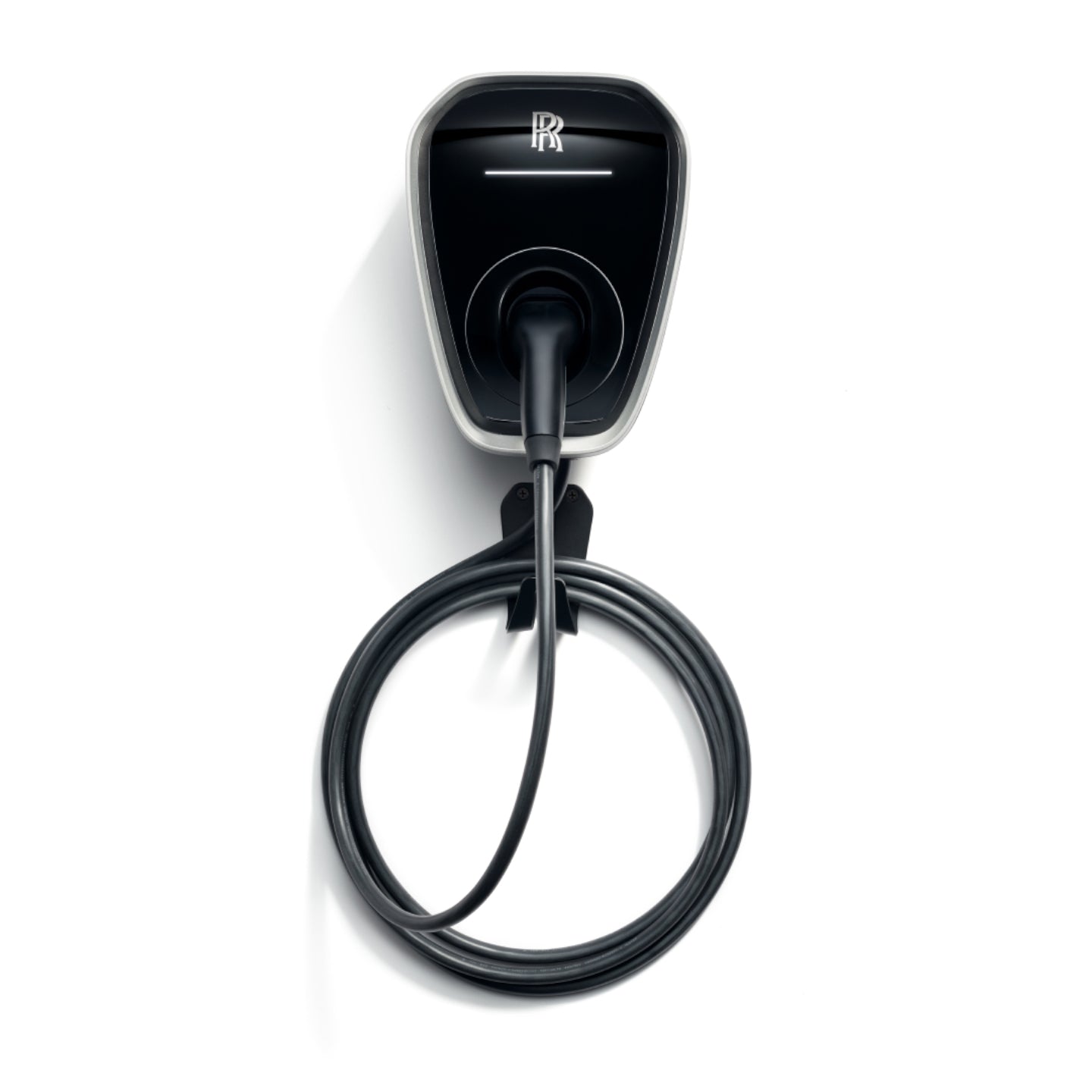

The integrated cable management system ensures easy handling, whilst the LED bar indicates charging status, operating mode and functional conditions.
The Rolls-Royce Motor Cars Wallbox is designed for indoor and outdoor use.
Therefore, it must be ensured that the site you select complies with the installation conditions and provides suitable protection for the device.
TECHNICAL DATA:
VEHICLE CONNECTION PLUG: SAE J1772 PLUG
INPUT/OUTPUT VALUES: 240V, 40 A, 60Hz, Single-Phase
INPUT WIRING: L1, L2, PE
EARTHING SYSTEM: TT/TN/IT
RATED CURRENT*: 0 A, 6 A, 10 A, 12 A, 16 A, 20 A, 24 A, 32 A
*rated current can be adjusted using DIP switch
CABLE LENGHT: 25 ft
CABLE FEED: Surface-mounted
MINIMUM CONNECTION CROSS-SECTION: 6 AWG
INTERNAL FAULT CURRENT DETECTION: Alternating current: 20 mA
PROTECTION AGAINST ELECTRIC SHOCK: Class II
HOUSING INGRESS PROTECTION*: NEMA 3S
*For indoors and outdoors
DIMENSIONS: 270 x 370 x 185 mm / 10.6 x 14.6 x 7.3 inch
WEIGHT: 8kg / 17.63 lb
ELECTRICAL PROTECTION FROM: Overcurrent, short-circuit, overvoltage, undervoltage, earth faults, excess temperature.
INTERFACES
DISPLAY: LED
COMMUNICATIONS: Bluetooth
AMBIENT CONDITIONS
OPERATING TEMPERATURE: -40°C ~ +50°C / -40°F ~ +122°F
TEMPERATURE PROPERTIES: This is not a safety device; it is only a function.
VEHICLE CONNECTION PLUG: SAE J1772 PLUG
INPUT/OUTPUT VALUES: 240V, 40 A, 60Hz, Single-Phase
INPUT WIRING: L1, L2, PE
EARTHING SYSTEM: TT/TN/IT
RATED CURRENT*: 0 A, 6 A, 10 A, 12 A, 16 A, 20 A, 24 A, 32 A
*rated current can be adjusted using DIP switch
CABLE LENGHT: 25 ft
CABLE FEED: Surface-mounted
MINIMUM CONNECTION CROSS-SECTION: 6 AWG
INTERNAL FAULT CURRENT DETECTION: Alternating current: 20 mA
PROTECTION AGAINST ELECTRIC SHOCK: Class II
HOUSING INGRESS PROTECTION*: NEMA 3S
*For indoors and outdoors
DIMENSIONS: 270 x 370 x 185 mm / 10.6 x 14.6 x 7.3 inch
WEIGHT: 8kg / 17.63 lb
ELECTRICAL PROTECTION FROM: Overcurrent, short-circuit, overvoltage, undervoltage, earth faults, excess temperature.
INTERFACES
DISPLAY: LED
COMMUNICATIONS: Bluetooth
AMBIENT CONDITIONS
OPERATING TEMPERATURE: -40°C ~ +50°C / -40°F ~ +122°F
TEMPERATURE PROPERTIES: This is not a safety device; it is only a function.
The specified operating temperature range must not be exceeded.
The device supplies the charging current continuously within the specified operating temperature ranges.
To increase the charging availability, the charging current is reduced from 32 A to 24 A, 16 A and 6 A if the temperature is exceeded.
After this, the charging cycle may also be shut down.
Once the temperature has dropped, the charging cycle is continued and the charging current is adjusted to the configuration.
STORAGE TEMPERATURE: 40 ºC to +80 ºC / 104 ºF to +176 ºF
HUMIDITY: 95 % relative humidity, non-condensing
ALTITUDE: 3000 m / 9842.52 FT
COOLING: Natural Cooling
IMPACT PROTECTION: IK09
OVERVOLTAGE CATEGORY: OVC III
ACTION AFTER A POWER OUTAGE: Random delay between 5 and 100 seconds before the charging cycle is restarted a9er a power outage.
The device supplies the charging current continuously within the specified operating temperature ranges.
To increase the charging availability, the charging current is reduced from 32 A to 24 A, 16 A and 6 A if the temperature is exceeded.
After this, the charging cycle may also be shut down.
Once the temperature has dropped, the charging cycle is continued and the charging current is adjusted to the configuration.
STORAGE TEMPERATURE: 40 ºC to +80 ºC / 104 ºF to +176 ºF
HUMIDITY: 95 % relative humidity, non-condensing
ALTITUDE: 3000 m / 9842.52 FT
COOLING: Natural Cooling
IMPACT PROTECTION: IK09
OVERVOLTAGE CATEGORY: OVC III
ACTION AFTER A POWER OUTAGE: Random delay between 5 and 100 seconds before the charging cycle is restarted a9er a power outage.
Part Number: 61905A1E1D3
Note: The available charging capacity depends on the vehicle, infrastructure and general settings.
Note: The available charging capacity depends on the vehicle, infrastructure and general settings.
PLEASE ALWAYS REFER TO THE INCLUDED USER MANUAL.
